135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

中国 HUATAO LOVER LTD 認証
中国 HUATAO LOVER LTD 認証
Huataoの会社は非常によい会社、私ですあなたの幸せな金庫に、有効、正直専門協力して非常に喜んでです!安定したサービスおよびプロダクトを私に与えるためにありがとう。-----EUROPAT

—— 産業EUROPT

オンラインです

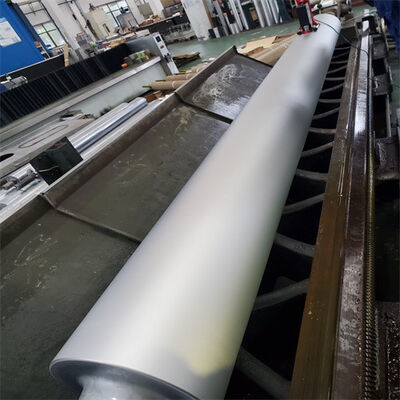

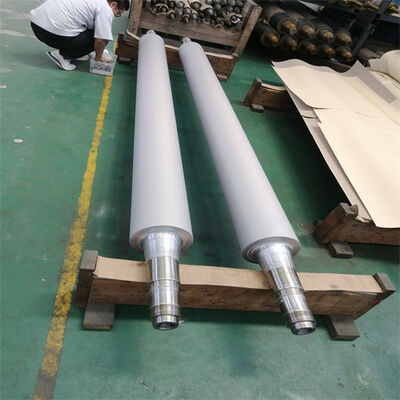

135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

大画像 :  135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

商品の詳細:
起源の場所: 中国
ブランド名: HUATAO
証明: ISO
モデル番号: HT-SR01
お支払配送条件:
最小注文数量: 1台のパソコン
価格: 2000USD/pc-5000USD/pc
パッケージの詳細: 木箱
受渡し時間: 5〜8週間
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 50 PCS/月
詳細製品概要
製品名: 135°C耐性 SCE MDO ストレッチローラー 700MPM キーワード: MDOストレッチロール,SCE MDOストレッチロール
ディスク/シャフト: Q345Bから縮小および溶接された軸とサイドディスク 加熱方法: 油で加熱したロール
シェル: 二重構造の建築 円形から: <0.05mm
表面コーティング: テフロク/セラミック/クロミング/ウォルフスタンカルバイド/SCE合金コーティング 円筒状: <0.05mm
ハイライト:

耐高温工业滚筒

,

精密SCE MDO拉伸滚筒

,

低圆度偏差工业滚筒

135 Celsius Degree Resistant SCE MDO Stretching Roller 700MPM
SCE MDO Stretching Roller Description:
SCE MDO stretching Rollers are specially designed for 2-gap, 3-gap and multi-gap stretching which is suitable for high speed, high temperature and super thin bi-oriented film (BOPP/BOPET/BOPA). Normally the stretching ratio of the stretching roller is from 3.2-3.5, while SCE our stretching roller's ratio can arrive at 4.0 with 1 year warranty.
SCE MDO Stretching Roller Parameters:
Component Specification
Shell Double-shell construction
Disc/Shaft Shrinked and welded shafts and side discs from Q345B
Flow-system Flow channels between inner and outer tube separated with welded leading spirals
Surface coating Teflok / ceramic / chroming / tungsten carbide/SCE alloy
SCE MDO Stretching Roller Features:
  • Design: Multiple rollers arranged in specific configuration to achieve desired stretching ratio and film properties
  • Roller Adjustability: Can be adjusted to accommodate different film thicknesses and stretching ratios
  • Cooling Capability: Cooling mechanisms to rapidly cool down film after stretching
  • Roller Surface: Engineered to provide necessary grip and traction during stretching process
  • Heating Capability: Some rollers equipped with heating elements for better stretching
  • Improved Film Properties: Enhances tensile strength, stiffness, shrink properties, gloss, and transparency
135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm 0
About Huatao Group

Founded in 2008, Huatao Group is a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry, and nonwoven fabric industries with over 15 years of experience.

Our Product Range:
  • Paper Industry: Forming roller, vacuum couch roller, dandy roller, breast roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller
  • Plastic & Rubber: Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller, induction heating embossing roller, induction heating calender roller, godget roller
  • Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry. Our products have been exported to more than 96 countries and have earned an excellent reputation.

We understand each customer's unique requirements and match them with superior quality products from our network of domestic factories. Our goal is to ensure every customer uses HUATAO products with complete confidence, knowing our service never ends.
