商品の詳細:
お支払配送条件:
|
| 製品名: | 5mm 厚さのPUスクリーンパネル 8.0mm 迅速クランプ設計の砂石のためのメッシュ | キーワード: | スクリーン、ファインメッシュ、振動スクリーン、ウレタンスクリーン |
|---|---|---|---|
| 寸法: | 1040mm × 700mm またはOEM | 一生: | 6～12ヶ月 |
| 開口サイズ: | 0.045mm ~8.0mm | 厚さ: | 5mm |
| 色: | オレンジ,赤,またはご希望に | 応用: | 微細スクリーニング、シリカ砂処理、鉄 |
| 耐久性: | 高い耐摩耗性 | パッケージ: | カートンまたは木箱 |
| ハイライト: | 5mm PU gravel screen panel,8.0mm mesh polyurethane screen,quick-clamp PU screen for gravel |
||

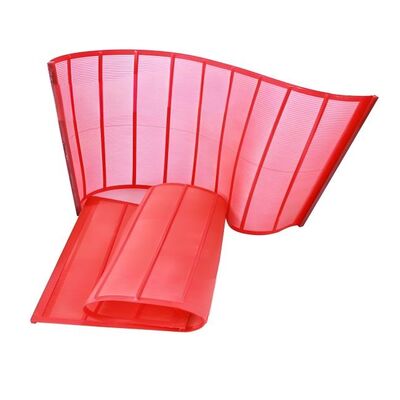

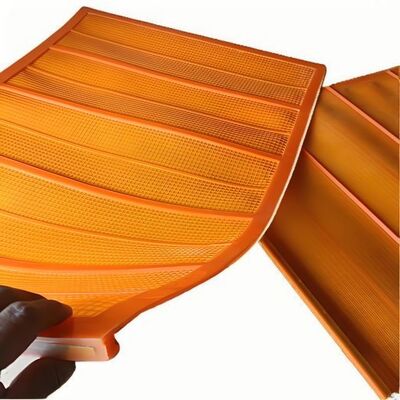

5mm thickness PU screen panel with 8.0mm mesh for gravel applications features a quick-clamp design for easy installation. This high-frequency PU fine mesh excels in silica sand processing, capturing particles from 0.045-1.0mm with its precisely engineered 35-40% open area that balances throughput with precision.
| Specification | Value |
|---|---|
| Material | Polyurethane |
| Aperture Size | 0.045-8.0mm |
| Dimension Size | 1040*700mm (standard or OEM sizes available) |
| Color | Red or Orange |
| Durability | High Wear-Resistant |
| Application | Mining & Quarry |
| Wear Resistance | 3-8 times longer life span than conventional screens |
Our high-performance urethane screen panels undergo rigorous production processes to ensure precision and durability:
High-grade polyurethane raw materials with UV stabilizers and anti-aging agents are selected for optimal abrasion resistance and elasticity.
Precision CNC-machined stainless steel molds with mirror-finished surfaces ensure dimensional accuracy for aperture geometries.
Vacuum-degassed polyurethane is poured into preheated molds and cured at 80-120°C for uniform density and structural integrity.
Precision laser trimming removes excess flash while edge sealing prevents delamination during operation.
Each panel undergoes laser scanning for aperture verification, simulated vibration testing, and material certification per ISO 9001 standards.
