| 製品名: | 高耐用性PUコーティングスクリーンメッシュ 1.5mm 電線直径 直角孔 採掘用 | キーワード: | タフレックススクリーン,振動スクリーン |
|---|---|---|---|
| 線径: | ミン1.5mm | ワイヤメッシュ: | ミニ2mm |
| 色: | オレンジ、レッド、グリーン、イエロー | 応用: | 採石場のスクリーニング |
| 耐久性: | 高い耐摩耗性 | パッケージ: | カートンまたは木箱 |
| ハイライト: | PU-coated mining screen mesh,1.5mm Mining Screen Mesh,rectangular hole mining mesh |
||
High-Wear PU-Coated Screen Mesh 1.5mm Wire Diameter Rectangular Holes Mining Use
1)Description of High-Wear PU-Coated Screen Mesh 1.5mm Wire Diameter Rectangular Holes Mining Use
Designed for quarry and mining applications, Huatao replace Tufflex screens combine polyurethane-coated wire ropes (1.5–12mm diameter) and synthetic cords to deliver superior performance over traditional woven wire. The polyurethane coating—applied to both rope types—creates a non-stick surface that prevents material adhesion and clogging, a common issue with older screen media.
2) Key Advantage of High-Wear PU-Coated Screen Mesh 1.5mm Wire Diameter Rectangular Holes Mining Use
Apertures, available in square or rectangular shapes, span 1.5mm to 45mm, with custom rectangular slots as narrow as 0.7mm for fine separation tasks. This versatility makes Tufflex suitable for everything from coarse aggregate screening to precise mineral classification. Its construction—fully or partially welded—adds durability, while optional welded polyurethane sheets reinforce areas prone to impact, such as near hooks, further enhancing wear resistance.
What sets Huatao Replace Tufflex apart is its compatibility with existing equipment: no modifications are needed to replace woven wire screens. Maintenance remains straightforward, with tension checks mirroring traditional protocols. In end-tension setups, synthetic cords can be positioned cross-flow or beneath wire ropes, aiding particle stratification. The result? Improved screening quality, reduced clogging, and longer intervals between replacements—key for maximizing productivity in busy operations.
3) Specification of High-Wear PU-Coated Screen Mesh 1.5mm Wire Diameter Rectangular Holes Mining Use
| Parameter | Specification |
| Material | PU-coated steel wire |
| Wire Diameter | 2.5mm |
| Aperture Size | 5mm square |
| Tensile Strength | 850 N/mm² |
| Temperature Range | -40°C to +90°C |
| Weight | 12.5 kg/m² |
| Open Area | 38% |
Why Choose HUATAO?
HUATAO guarantees industry-leading quality with our Ultra-Wear panels, backed by an 18-month warranty. Our global logistics network ensures delivery within 3 weeks for standard sizes, with custom configurations available in 4-5 weeks. Every panel undergoes rigorous ISO 9001-certified quality checks to ensure optimal performance in your mineral processing operation.
At HUATAO, we stand behind the quality and performance of our Tufflex Ultra-Wear Mining Screen Panels. Each panel undergoes rigorous ISO 9001-certified quality control to ensure it meets the highest industry standards. Our global logistics network ensures fast delivery, with standard sizes available in just 3 weeks and custom configurations in 4-5 weeks.

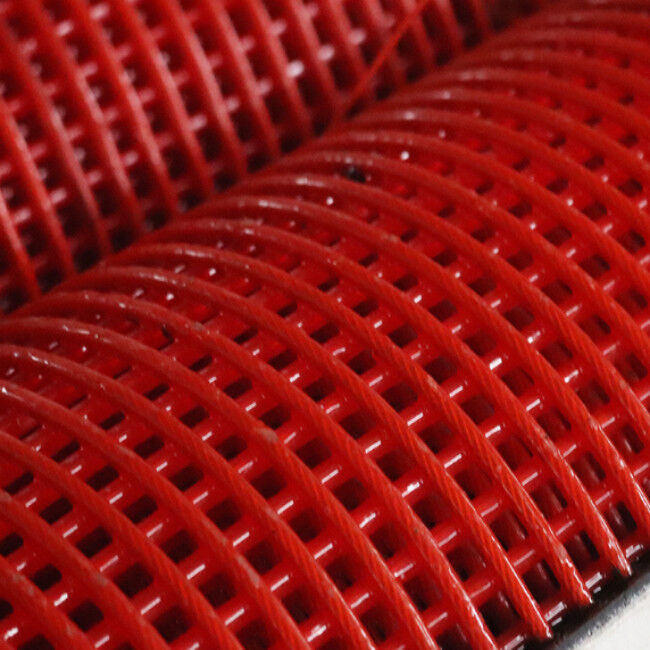

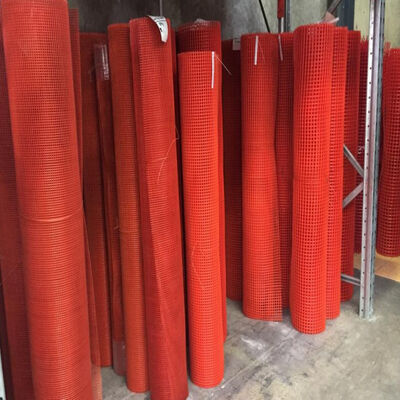

4) Images of Tufflex Screen Mesh include:
A close-up of the Tufflex Screen Mesh hooks showing :
5) Factory Production Processing of Tufflex Screen Mesh
6). Packaging & Logistics of PU-Coated wire rope screen:
Screens are packed in moisture-proof, shock-absorbent materials and labeled for traceability. Custom sizes and OEM branding are
accommodated seamlessly.
7) Application of Tufflex Screen
HUATAO Hot-Selling Polyurethane Product List as below:
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
