商品の詳細:
お支払配送条件:
|
| 製品名: | WS 85 ポリウレタン振動スクリーン 305×610mm 酸性耐性 0.1mm シーム 金鉱の脱水のために | キーワード: | PUスクリーンパネル,脱水スクリーンパネル,WS85 |
|---|---|---|---|
| 厚さ: | 20mm、30mm、40mm | 材料: | ポリウレタン(PU) |
| 色: | オレンジ、レッド、グリーン、イエロー | 応用: | 採石場のスクリーニング |
| 単位の販売: | 単品 | パッケージ: | カートンまたは木箱 |
| ハイライト: | polyurethane vibrating screen gold mining,acid-resistant Polyurethane modular screen 305x610mm,mining WS 85 vibrating screen |
||
WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
1)Description of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
Crafted via HUATAO’s signature open-cast polyurethane process, the Replacement WS 85 Modular Screen undergoes high-temperature curing that enhances molecular linkage, delivering exceptional strength. Its wear resistance is unmatched, lasting significantly longer than rubber or metal alternatives, which is critical for heavy-duty use in gold mines and copper ore processing.
Corrosion-resistant and tolerant of acids and alkalis, it thrives in harsh working conditions, from concentrate dehydration to carbon slurry separation. The screen’s precise seams (customizable from 0.075mm upwards) ensure accurate particle grading, while its low friction surface prevents material buildup, keeping pores clear.
Elastic by nature, it handles large throughputs with efficient dewatering, vital for tailings dry discharge. Customizable in size (305×610mm, 500×500mm, etc.) and installation (bolts, Card slot type,rail seats), it adapts to any setup. The double-hardness MDI structure—soft surface, hard base—reduces clogging, boosting efficiency and longevity.
2) Key Features & Benefits of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
| ✅ Durability: | 8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: | Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: | Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: | Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
| Material | steel frame and polyurethane surface |
| Feature | WS85,Wear-resistant, efficient and easy to install |
| Thickness | 30mm, 40mm, 50mm |
| Opening size | Slot Width 0.1mm – 2.5mm |
| Screen Width | 305mm, 500mm and 515mm, others can be designed. |
| Screen length | 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type | WS85 |
| Application | * Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste. |

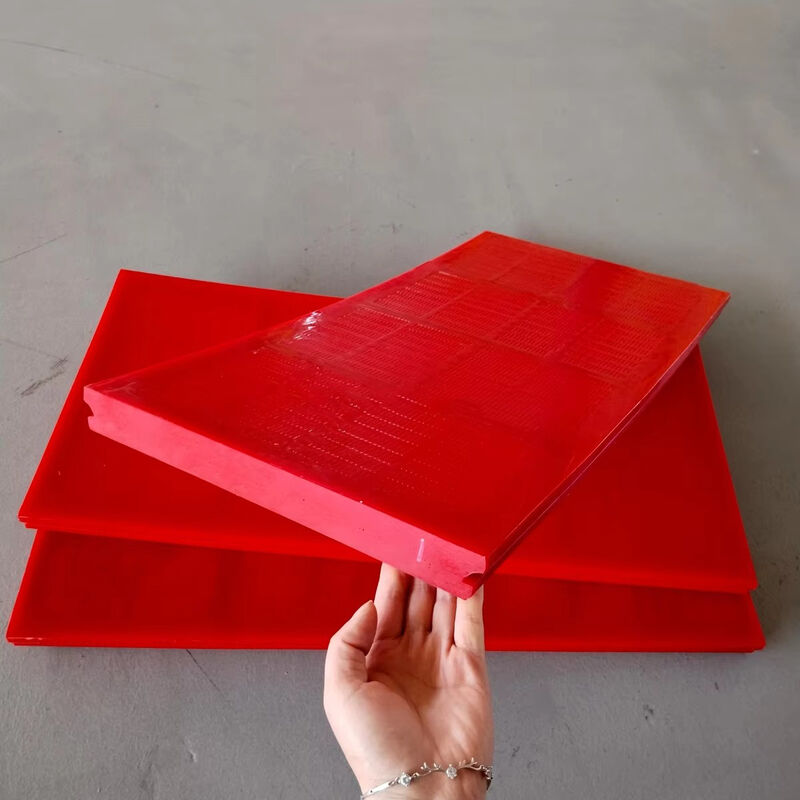

4) Images of Polyurethane Dewatering Screen Panel include:
A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
HUATAO Hot-Selling Polyurethane Product List as below:
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
