| 製品名: | WS 85 モジュール式ポリウレタンスクリーン 600×600mm 0.2mm シーム 炭鉱残渣処理用目詰まり防止 | キーワード: | PUスクリーンパネル,脱水スクリーンパネル,WS85 |
|---|---|---|---|
| 厚さ: | 20mm、30mm、40mm | 材料: | ポリウレタン(PU) |
| 色: | オレンジ、レッド、グリーン、イエロー | 応用: | 採石場のスクリーニング |
| 単位の販売: | 単品 | パッケージ: | カートンまたは木箱 |
| ハイライト: | modular polyurethane screen 600x600mm,coal mine tailings screen,WS 85 modular screen |
||
WS 85 Modular Polyurethane Screen 600×600mm 0.2mm Seam Anti-Clogging for Coal Mine Tailings Treatment
1)Description of WS 85 Modular Polyurethane Screen 600×600mm 0.2mm Seam Anti-Clogging for Coal Mine Tailings Treatment
The Replacement WS 85 Modular Screen by HUATAO features open-cast polyurethane, cured at high temperatures to strengthen molecular links, resulting in superior durability. It outlasts rubber and metal screens, making it ideal for iron ore, copper mines, and gold processing.
Resistant to acids, alkalis, and corrosion, it performs well in harsh environments like concentrate dehydration and carbon slurry separation. Its precise seams (0.2mm to 0.8mm) ensure accurate grading of various particle sizes. The low friction surface prevents sticking, reducing clogging, while its elasticity enables high throughput and efficient dewatering—critical for tailings dry discharge.
Customizable in dimensions (305×610mm, 500×500mm) and installation methods (bolts, Card slot type,rail seats), it adapts to any setup. The double-hardness MDI structure (soft top, hard base) minimizes blockages, boosting efficiency and longevity.
2) Key Features & Benefits of WS 85 Modular Polyurethane Screen 600×600mm 0.2mm Seam Anti-Clogging for Coal Mine Tailings Treatment
| ✅ Durability: | 8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: | Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: | Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: | Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of WS 85 Modular Polyurethane Screen 600×600mm 0.2mm Seam Anti-Clogging for Coal Mine Tailings Treatment
| Material | steel frame and polyurethane surface |
| Feature | WS85,Wear-resistant, efficient and easy to install |
| Thickness | 30mm, 40mm, 50mm |
| Opening size | Slot Width 0.1mm – 2.5mm |
| Screen Width | 305mm, 500mm and 515mm, others can be designed. |
| Screen length | 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type | WS85 |
| Application | * Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste. |

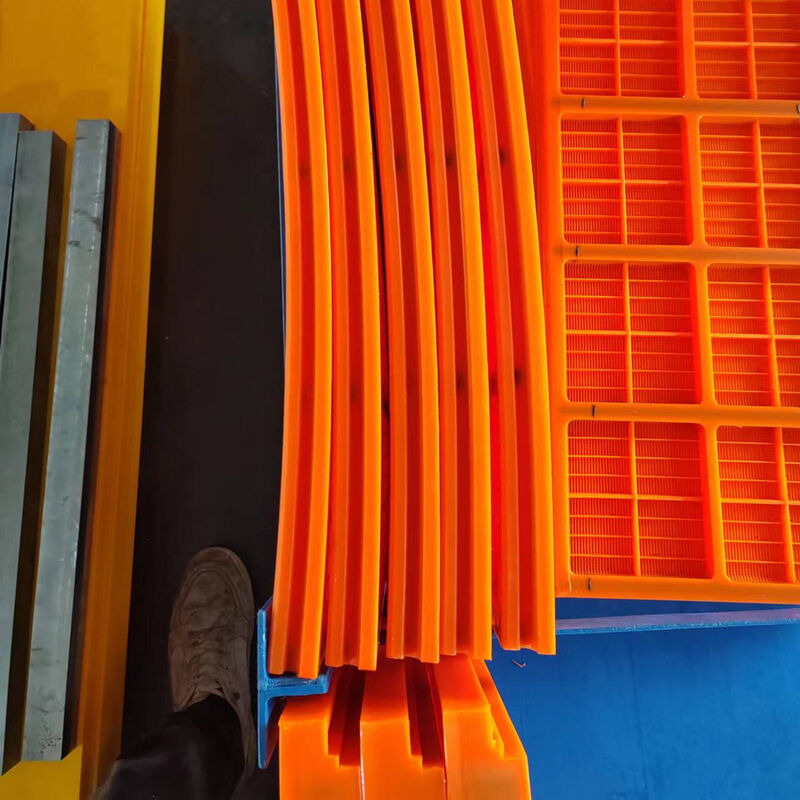

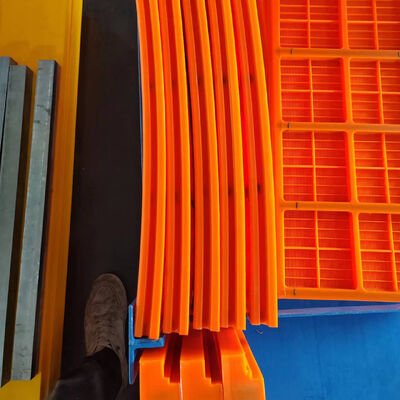

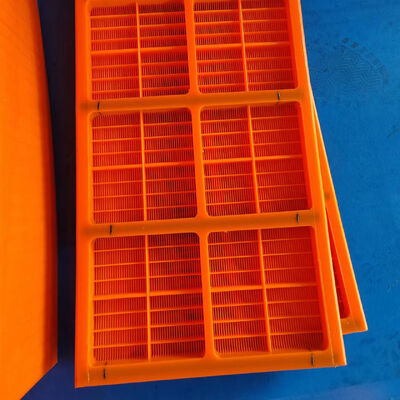

4) Images of Polyurethane Dewatering Screen Panel include:
A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
