商品の詳細:
お支払配送条件:
|
| メッシュ素材: | ステンレス鋼304,304l,316,316l | ||
|---|---|---|---|
| ハイライト: | SS316 Rotex separator screen,UV-resistant tensile bolt cloth,Rotex replacement wire mesh |
||

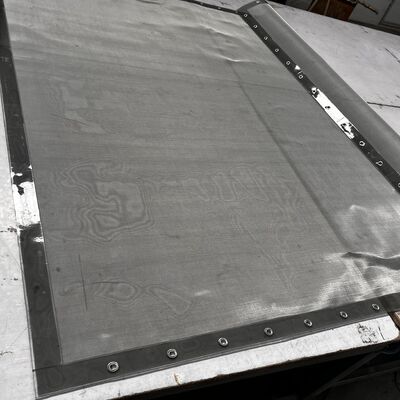

SS316 UV-Resistant Grommet Screen for Rotex 14-230 Mesh
SS316 UV-Resistant Tensile Bolt Cloth for Rotex Separators
Premium Grommet Screens for Mineral Screening
HUATAO's SS316 UV-Resistant Tensile Bolt Cloth with White PUR Strip is engineered for outdoor screening applications in Rotex® separators. These high-performance grommet screens feature reinforced edges with durable PU strips or 180-degree folded mesh, secured with stainless steel grommets for exceptional durability.
Key Advantages
Technical Specifications
Parameter
Specification
Mesh Material
Stainless Steel 304, 304L, 316, 316L
Edge material
PU, canvas, or silica gel reinforced strips
Mesh type
Woven mesh
Mesh count
14-230
Wire diameter
0.0014-0.0090 inch
Open area
46.0%-76.4%
Detailed Mesh Specifications
Item
Mesh Size
Wire Size (in.)
Microns
Open Area %
1
14
0.009
1580
76.4
2
16
0.009
1360
73.3
3
18
0.009
1180
70.2
4
20
0.009
1040
67.2
5
22
0.0075
964
69.7
6
24
0.0075
868
67.2
7
26
0.0075
786
64.8
8
28
0.0075
716
62.4
9
30
0.0065
681
64.8
10
32
0.0065
630
62.7
Edge Type Options
Black PU-Strip Grommet Screen
Transparent PU-Strip Grommet Screen
180° Folded Edge Grommet Screen
Production Process
Packaging & Logistics

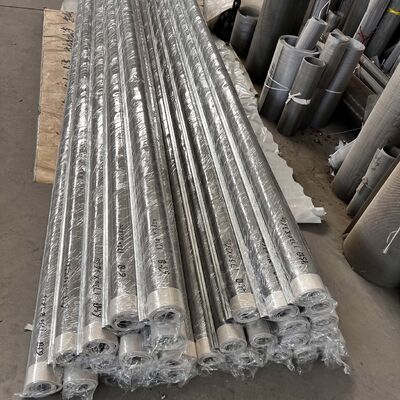

Wooden box packaging ensures safe transportation and storage.
Industrial Applications
HUATAO Polyurethane Product Line
Urethane Screen
Tufflex Screen
Polyurethane Dewatering Screen Mesh
WS 85 Modular Screen
Polyurethane Screen Panels
Rotex Replacement Screens
Rubber Screen Panel
Vibrating Screen Mesh
Self cleaning Wire Mesh
Shale Shaker Screen
