| 製品名: | 20*5mm 開口サイズ SELM型 振動ノイズ削減付き 柔軟なエッジゴムメッシュパネル | キーワード: | ゴムスクリーンパネル,振動スクリーンパネル |
|---|---|---|---|
| 材料: | 耐磨ゴム + 鋼筋枠 | タイプ: | モジュール式スクリーンパネル,拡張スクリーンメッシュ,アンチブロックスクリーンメッシュ |
| 硬度: | 40海岸aの60海岸a | 厚さ: | 25mm (カスタマイズ可能) |
| 穴サイズ: | 10-50mm (調節可能) | サイズ: | 610*305*40mm 305*305*40mm |
| 重さ: | <15kg/m2 (厚さ15mm) | アプリケーション: | スクリーニング\分離\ \ふるう分類 |
| ハイライト: | flexible edge rubber screen,20*5mm rubber screen,20*5mm rubber screening |
||
1)Description of 20*5mm opening size SELM Type Flexible Edge Rubber Mesh Panel with Vibration Noise Reduction
A rubber screen panel for mining machinery components is of great significance in the mining sector. It is fabricated with high - quality rubber, which gives it remarkable elasticity, wear - resistant properties, and anti - corrosion features.
The design of the rubber screen mesh aims to separate minerals and materials according to their sizes. It can effectively resist the impact and abrasion caused by materials during screening, ensuring smooth and reliable operation. Owing to its unique structure and material traits, it can adapt to harsh working conditions in mines, including high - humidity, high - dust, and intense - vibration surroundings.
Furthermore, the rubber screen mesh has a good sealing effect, which can avoid material leakage and improve the screening process's efficiency and quality. It plays a vital role in enhancing the overall efficiency of mining machinery and reducing production expenses.
2) Key Features & Benefits of 20*5mm opening size SELM Type Flexible Edge Rubber Mesh Panel with Vibration Noise Reduction
Multi-layered impact absorption technology combines a rigid polymer matrix with elastic surface layers, ensuring structural stability under heavy loading. Precision-engineered openings support applications ranging from fine sand (0.5mm) to coarse rock (100mm+) processing. Specialized formulation resists hydrolysis degradation in wet environments and hardening in dry operations. Proprietary non-stick surface treatment minimizes blinding incidents by 45%, while tapered hole walls prevent pegging. Available with optional quick-release clamps or permanent vulcanized bonding for different maintenance requirements.
3) Specification of 20*5mm opening size SELM Type Flexible Edge Rubber Mesh Panel with Vibration Noise Reduction
| Feature | Specification |
| Material | High-wear rubber + steel frame |
| Type | SELM Rubber Panel or customized |
| Thickness | 25-40mm (customizable) |
| Hole Size | 10-50mm (adjustable) |
| Size | 610*305*40mm, 305*305*40mm |
| Weight | <15kg/m² (15mm thickness) |
| Applications | Ore classification, coal washing, mineral processing |
Why Choose HUATAO?
HUATAO's engineering team customizes Rubber screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our quality control exceeds industry standards, ensuring reliable performance in your processing plant.

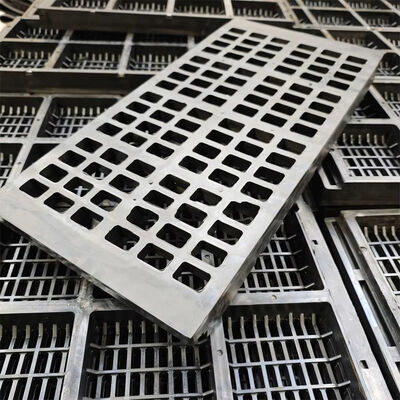

4) Images of Rubber Vibrating Screen Panel include:

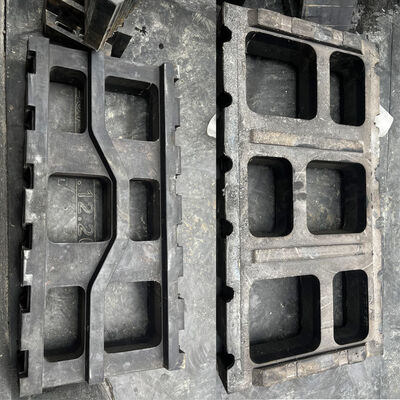

A close-up of the Rubber Vibrating Screen Panel showing :
5) Working Processing of Rubber Vibrating Screen Panel
6). Rubber Vibrating Screen Panel Packaging & Logistics: Wooden box package.
7) Application of Rubber Vibrating Screen Panel
