商品の詳細:
お支払配送条件:
|
| 製品名: | 25*6mm メスト 信頼性の高いゴムシート網パネル 鉱山用 - 振動スクリーンを使用 | キーワード: | ゴムスクリーンパネル,振動スクリーンパネル |
|---|---|---|---|
| 材料: | 耐磨ゴム + 鋼筋枠 | タイプ: | モジュール式スクリーンパネル,拡張スクリーンメッシュ,アンチブロックスクリーンメッシュ |
| 硬度: | 40海岸aの60海岸a | 厚さ: | 25mm (カスタマイズ可能) |
| 穴サイズ: | 10-50mm (調節可能) | サイズ: | 610*305*40mm 305*305*40mm |
| 重さ: | <15kg/m2 (厚さ15mm) | アプリケーション: | スクリーニング\分離\ \ふるう分類 |
| ハイライト: | reliable rubber screening,25*6mm rubber screening,25*6mm rubber for screens |
||
1)Description of 25*6mm Mesto Reliable Rubber Sieve Mesh Panels for Mining - Use Vibrating Screens
The rubber screen panel used in mining machinery parts is a key part in the mining industry. It is mainly composed of superior - quality rubber materials, endowing it with excellent elasticity, wear resistance, and anti - corrosive properties.
This rubber screen mesh is designed to carry out the separation and classification of different - sized minerals and materials. During the screening process, it can firmly withstand the impact and friction of the materials, ensuring stable and trustworthy operation. With its special structure and material properties, it can adapt to a variety of harsh mining conditions, such as high - humidity, high - dust, and strong - vibration environments.
In addition, the rubber screen mesh has excellent sealing performance, which can prevent the leakage of materials and enhance the efficiency and quality of the screening process. It is crucial for improving the overall efficiency of mining machinery and reducing production costs.
2) Key Features & Benefits of 25*6mm Mesto Reliable Rubber Sieve Mesh Panels for Mining - Use Vibrating Screens
Featuring a composite core with embedded shock-absorbing chambers, this screening media extends equipment lifespan by reducing vibration transfer. Interchangeable aperture configurations accommodate changing production demands without full panel replacement. Tested in environments with 95% humidity and extreme temperature fluctuations (-20°C to 80°C). The staggered hole pattern design achieves 70% faster material throughput while decreasing screen blockage frequency. Choose from standard DIN-compliant fasteners or customized attachment solutions for seamless integration with existing machinery.
3) Specification of 25*6mm Mesto Reliable Rubber Sieve Mesh Panels for Mining - Use Vibrating Screens
| Feature | Specification |
| Material | High-wear rubber + steel frame |
| Type | SELM Rubber Panel or customized |
| Thickness | 25-40mm (customizable) |
| Hole Size | 10-50mm (adjustable) |
| Size | 610*305*40mm, 305*305*40mm |
| Weight | <15kg/m² (15mm thickness) |
| Applications | Ore classification, coal washing, mineral processing |
Why Choose HUATAO?
HUATAO's engineering team customizes Rubber screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our quality control exceeds industry standards, ensuring reliable performance in your processing plant.

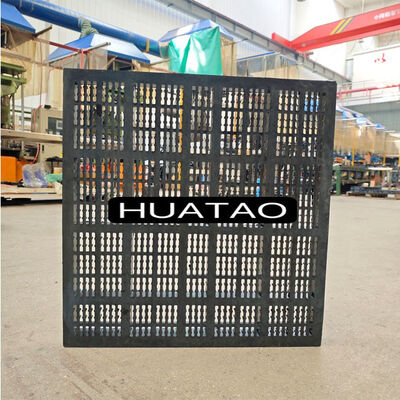

4) Images of Rubber Vibrating Screen Panel include:

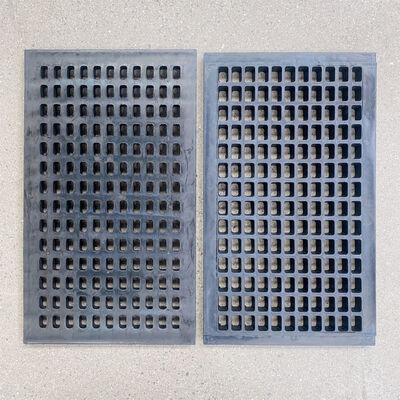

A close-up of the Rubber Vibrating Screen Panel showing :
5) Working Processing of Rubber Vibrating Screen Panel
6). Rubber Vibrating Screen Panel Packaging & Logistics: Wooden box package.
7) Application of Rubber Vibrating Screen Panel
HUATAO Hot-Selling Polyurethane Product List as below:
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
