商品の詳細:
お支払配送条件:
|
| ペーパー プロダクト: | クラフト紙、テストはさみ金板 | 基礎の重量: | 110~150 g/m2 |
|---|---|---|---|
| 基礎の重量を計算して下さい: | 112g/m2 | トリムの幅: | 3300mm |
| 巻き枠の幅: | 3350mm | ワイヤー幅: | 3800mm |
| ノズルの速度: | 3650mm | 働く速度: | 150m/min |
| 設計速度: | 200m/min | 除行の速度: | 25m/min |
| わずかな容量: | 68t/d （112gsm、150m/min、3300mm、100%の効率） | ゲージ: | 4350mm |
| ドライブの種類: | AC頻度コンバーターの部門別ドライブ | ||
| ハイライト: | クラフト紙機械の試験用インナー,二重ワイヤの多筒紙機,非織物製紙機 |
||

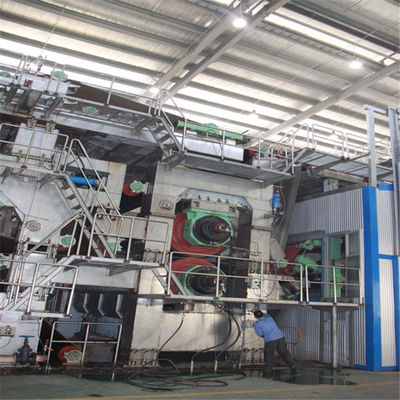

2800 / 500 Double - Wire Multi-Cylinder Kraft Paper Machine Test Liner Board Paper Machine
Application:
Equipments technology flow:

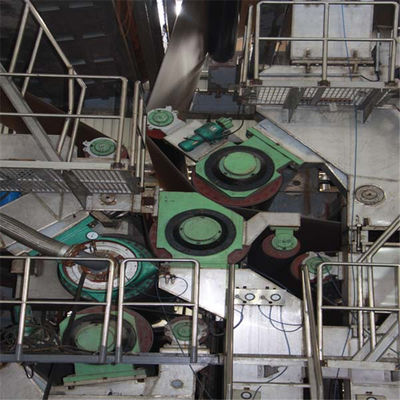

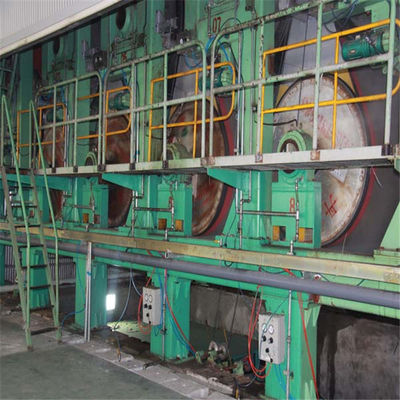

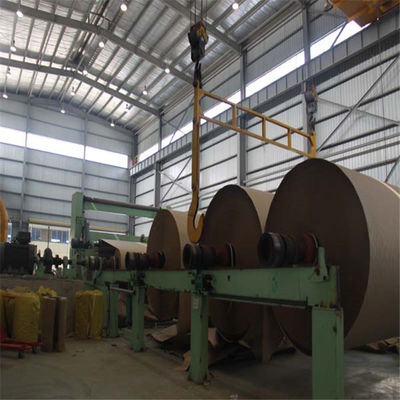

Air cushion headbox---double wire (top ply and base wire)--- 750/φ800 scution pre-press---φ1320 double felt jumbo roll press---φ1320 double felt jumbo roll press--- front dry:20sets of Φ1800mm dryer (arrangement is 6+8+8)--- φ800/φ800 sizing machine---rear dry section: 6sets of Φ1800mm dryers (6)---double roll hard calender---B/M (reservated position)---horizontal rolls-type drum reeling machine.
Main Technical Parameters
1 .1 technical parameters
Paper product: Kraft paper, Test Liner board
Basis weight: 110～150 g/m2
Calculate basis weight: 112g/m2
Trim width: 3300mm
Reel width: 3350mm
Wire width: 3800mm
Nozzle speed: 3650mm
Working speed: 150m/min
Design speed: 200m/min
Crawl speed: 25m/min
Nominal capacity: 68t/d (112gsm, 150m/min, 3300mm, 100% efficiency)
Gauge: 4350mm
Drive type: AC frequency converter sectional drive
Arrangement: single-layer layout, right hand machine (standing at reel machine and looking toward machine direction, drive side is on right hand side)
Top ply: pulp %
Base ply: pulp %
Top ply: 40～60g/m2 pulp consistency:0.3～0.6%
Base ply: 70～90g/m2 pulp consistency:0.5～1.0%
Dryness into press: ≥22%
Dryness into dryer: ≥44%
Dryness into sizing machine: 92%
Dryness out of sizing machine: 65~70%
Sizing glue quantity: 2.5~3g/m2(each surface), glue solid content: 8~12%
Dryness of finished paper: 92%
Horizontal shrinking percentage (average): ≤4%
Horizontal moisture deficit: ≤±7.5%
Horizontal grammage deficit: ≤±1.0%
Dryness when every ply paper recombinating: ≥12%
Forming wire 8kN/m 7kN/m
felt 5kN/m 4kN/m
dry wire 5kN/m 3kN/m
1.4 requirements on water, electricity, steam and compressed air
Requirement: pure, colorless, sand-removed.
Pressure: 3MPa,0.4MPa two types
PH valve: 6-8
Motor voltage: 380/220±5%
Control voltage: 24V
Frequency: 50HZ±1%
Steam pressure:Max. working pressure of dryer: 0.5MPa
Nominal pressure: 16Mpa
Set working pressure: 14Mpa
Filtering oil accuracy: 20μm
Supplying oil temperature: ≤30℃
