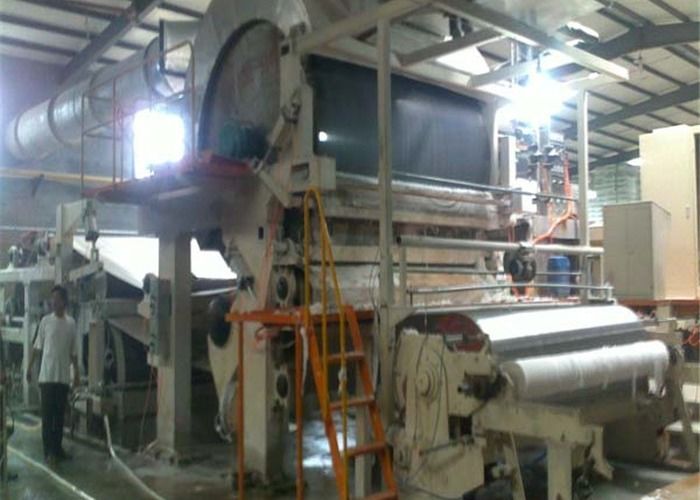

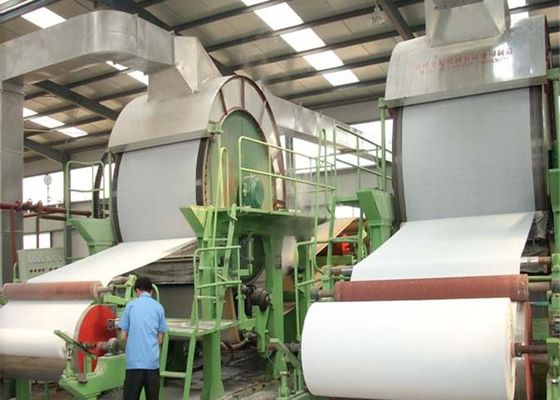

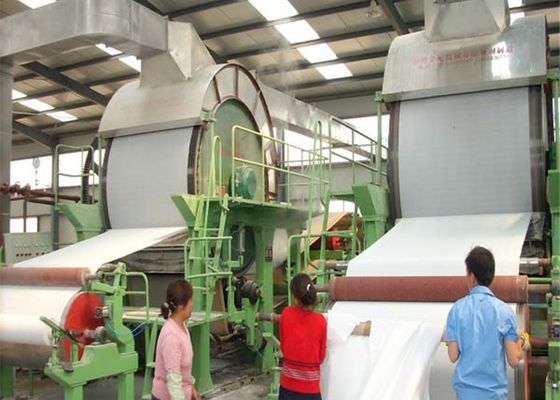

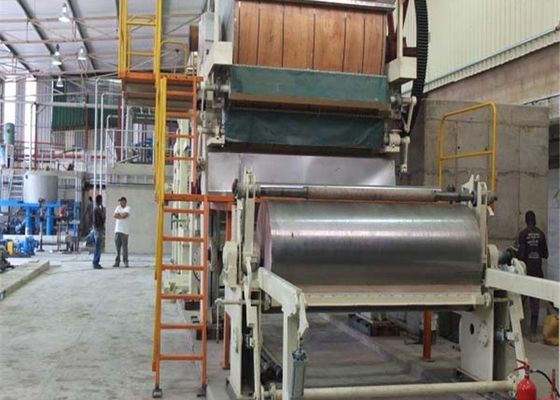

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Fully Automatic Low Speed FD1880 Toilet Paper Machine Small new machine

Application:

Mainly for the production of manufacture paper with pulp 18 - 30 g / ㎡,  toilet paper. Paper napkin base paper

Crafts Parameters:

1.  Pulp: wood pulp plate, waste paper etc as raw material

• Feeding pulp concentration : 0.3-0.9‰
• Beating degrees : 30-38°SR
• Paper sheet dryness

come out from wire case : 18-20％

Before go through MG cylinder : 36-40％

Come out from MG cylinder : 90-94％

Finish tissue : 90-94％

• Lateral shrinkage : 8-10％
• Day running hours: 22 hours/d
• Papermaking rate : 94％
• Yield : 95％
• Touch roll line pressure: 60 KN/m

Supporting parameter

1. AC voltage : 380V；50Hz

• Control voltage : 220/24V
• Water pressure: 0.3Mpa;

Working pressure: 0.2Mpa

• Compressed air pressure: 0.8Mpa;

Working pressure: 0.5Mpa

• Steam pressure: 0.6Mpa;

Working pressure:0.3Mpa

• Vacuum suction tank: 20-40Kpa
• Water requirement: pure color, remove impurities, PH value 6.8

Main Technical Parameters:

1. Paper weight: 18-30g/m2

• Net width of paper :3900mm
• Designed speed : 230m/min
• Working speed: 150-200m/min
• Nominal capacity : 10T/D
• Track gauge : 4600mm
• Wrinkling rate : 15-30℅
• Drive way: Y-type AC motor drive division, section drive
• Control way:frequency conversion
• Power:

MG cylinder motor: 95kw

Roll-cylinder motor: 7.5kw

Total:102.5Kw

• Arrangement: single-layer, the left and right hand arrangement
