商品の詳細:
お支払配送条件:
|
| 項目: | HT-58 | 流動度: | 8000-12000l/min |
|---|---|---|---|
| 入口の一貫性: | 2%-5% | 入口のパルプの圧力: | 0.2-0.5Mpa |
| スラグ排出モード: | MANUAL/AUTOMATIC | 適用: | パルプのクリーニング |
| ハイライト: | 高一貫性クリーナー 8-12m3/min,入口コンシスタンスクリーナー 2-5%,非織物高一貫性クリーナー |
||
2-5% Inlet Consistency 8-12m³/Min Flow Rate High Consistency Cleaner
Product Description
High consistency cleaner is mainly used for removing the heavy impurities such as iron ,book nail , ash , sand and glass block ,etc , to achieve the purpose of reducing wear of the after equipment and improve the quality of stock .
Product Specification
| Type | HT-53 | HT-54 | HT-55 | HT-56 | HT-57 | HT-58 |
| Flow Rate(l/min) | 900-1400 | 1800-2600 | 3000-4500 | 4500-5800 | 5800-7500 | 8000-12000 |
| Consistency of inlet pulp | 2%-5% | |||||
| Pressure of inlet pulp | 0.2-0.5mpa | |||||
| Slag Discharge Mode | Manual/Automatic | |||||
Product Features
1.The working consistency of the Low Consistency Cleaner as high as 2.5%, hence the number of cleaner is reduced accordingly. It is suitable for meeting the requirements of high capacity pulp making equipment.
2.The bottom part equipped with axial flushing water device, it can control the coarse rejects consistency individually and control the fiber loss efficiently.
3.By diluting the coarse rejects, there will not appear blocking phenomenon in the pro-cess of reject discharging in every stage.

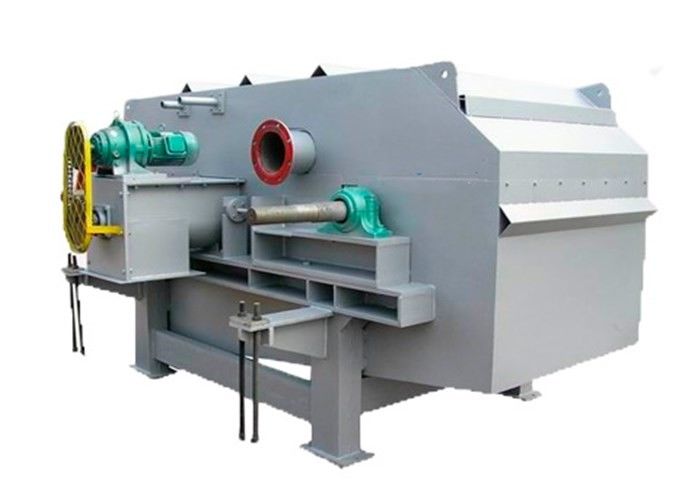

Product Photos
