商品の詳細:
お支払配送条件:
|
| 名前: | 刃の磨き機 | コアコンポーネント: | モーター,ベアリング,PLC,ギアボックス |
|---|---|---|---|
| 電圧: | 220V/380V 50Hz | 応用: | さまざまな種類の切削工具 |
| 粉砕の幅: | 180mm-290mm | 研削長: | 1500mm-9000mm |
| ハイライト: | CNC plywood knife sharpening machine,blade grinding machine for knives,industrial knife sharpener with warranty |
||

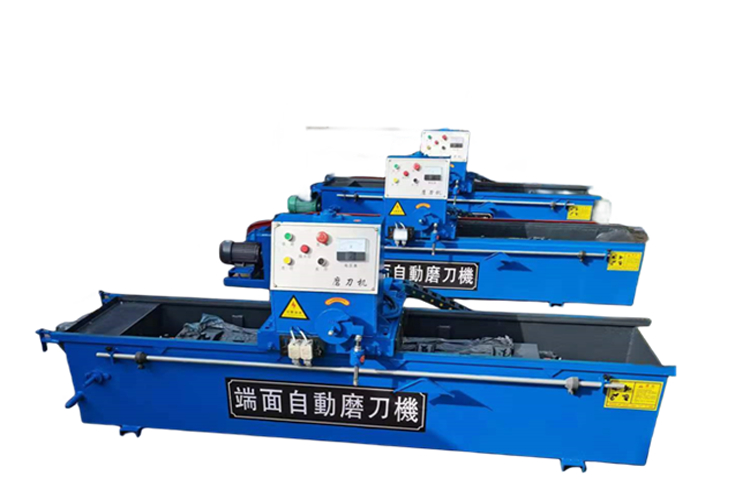

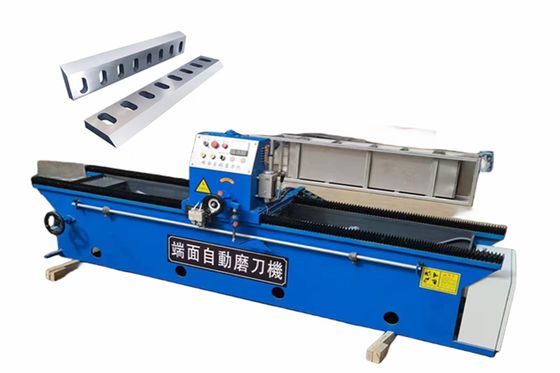

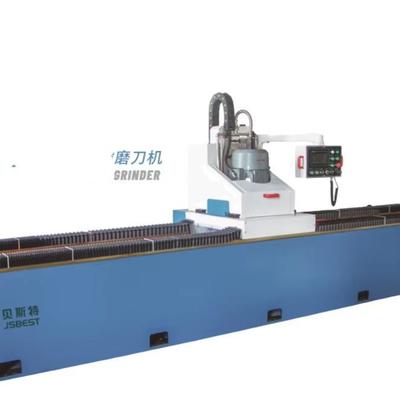

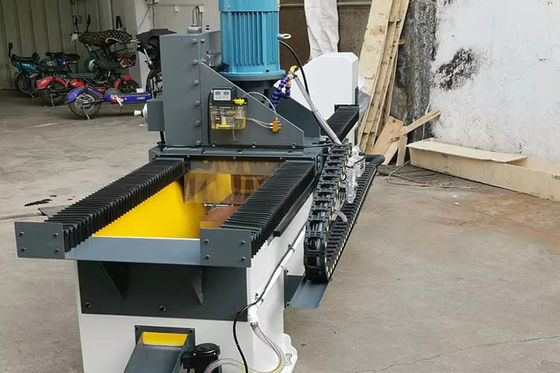

CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
Grinding Machine Specification:
We have been manufacturing knife sharpening machines for over 20years. Our professional products are supplied to machinery blade factory, mining machinery and other large enterprises demand heavy reinforced grinding machine, suitable for plane cutting wood industry factory, spinning factory and processing knife department requirements of big small and medium-sized precision grinding machines and so on. You can trust our product quality and we will give you the best price.
Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:
| Key workds | Blade Sharpener | |||
| Model | Working range(mm) | Moving motor | Wheel Size | Working Angle |
| HT-2070 | 0-700 | 90YSJ-4 GS60 | 125*95*32*12 | 0-90 |
| HT-20100 | 0-1000 | 90YSJ-4 GS60 | 125*95*32*12 | 0-90 |
| HT-20120 | 0-1200 | 90YSJ-4 GS60 | 150*110*47*14 | 0-90 |
| HT-20150 | 0-1500 | 90YSJ-4 GS60 | 150*110*47*14 |
0-90 |
Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...
Grinding Machine Feature:
1. PLC control system can be used to set the number of automatic cycles, the number of automatic feed times, the amount of feed.
2. Adopts national standard double steel plate and lining stiffener, stable, free from vibration.
3. Water tank for knife sharpening to avoid sparks and to cool down the machine, helping to prolong its service life.
4. The grinding head adopts hoisting device, which makes the replacement of the grinding wheel more convenient and rapid, and improves the operational efficiency.
5. The machine tool adopts square linear guide rail.
6. Adopts Taiwan Shangyin Precision Linear Guide Rail
