| 製品名: | 真空吸着ソファ 紙紙のロール 組織紙のマシン | キーワード: | 吸着ソファロール,真空吸着ソファロール,紙機吸着ソファロール |
|---|---|---|---|
| 応用: | 紙のシートから水分を効果的に除去する | 材料: | SS304、SS316 |
| 作業速度: | 最大2000m/min | 作業幅: | 1600~9000mm |
| 直径: | 400-1000mm | 吸引の幅: | 3000~8000mm |
| ハイライト: | 製紙機械用バキューム吸引コーチル,産業用ロール 2000m/min 速度,幅1600-9000mmのティッシュマシン用ローラー |
||

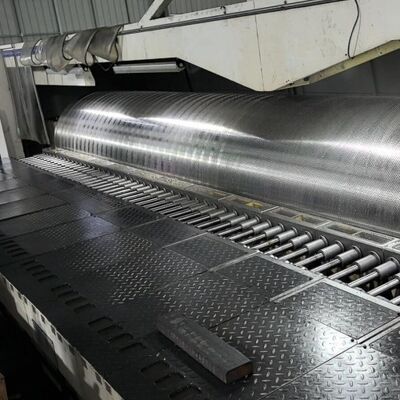

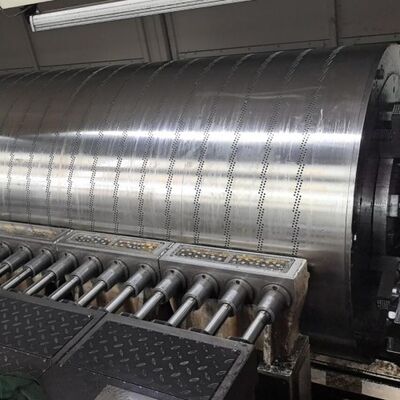

The suction couch roll for wire section enhances wire manufacturing by providing precise suction and support, preventing slippage, and reducing friction. Made from durable materials, it ensures long-lasting performance, improves wire surface cleanliness, and minimizes defects.
The working principle of suction couch roll is mainly based on the principles of vacuum adsorption and pressure difference. When the pulp passes through the vacuum roller, the vacuum chamber inside the roller forms negative pressure, attracting the moisture in the pulp. After being adsorbed onto the surface of the roller shaft, the moisture content of the paper significantly decreases through subsequent pressing and drying processes. This process not only improves the drying efficiency of the paper, but also enhances its physical properties.
| Product name | Suction couch roller for tissue paper machine |
|---|---|
| Working speed | Upto 2000m/min |
| Working width | 1600-9000mm |
| Diameter | 400-1000mm |
| Bearing center distance | 1900-9500mm |
| Suction width | 3000-8000mm |
| Material | SS304, SS316 |
